Standard setup for cleaning soldering pallets.

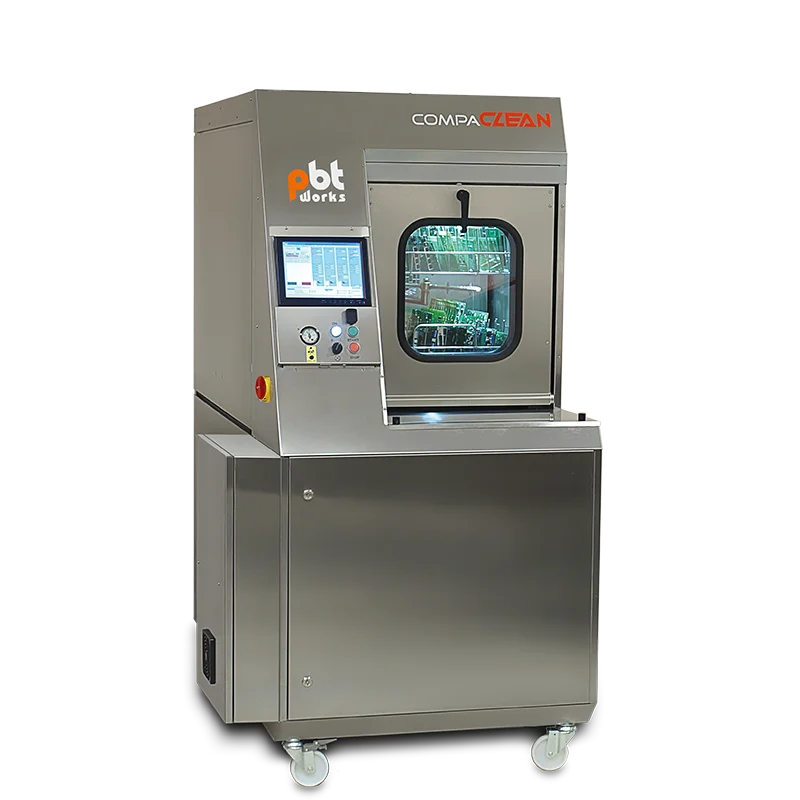

Compact automatic washer for medium size mechanical parts. Four step process including drying.
Application: 3D structures
Capacity: Small Volume
Contamination Solubility: Easy to Moderate
Cleaning quality requires perfect filtration and minimal cross contamination. Every PBT cleaning machine uses separated closed loop with dedicated pump and filtration system for each individual process step.

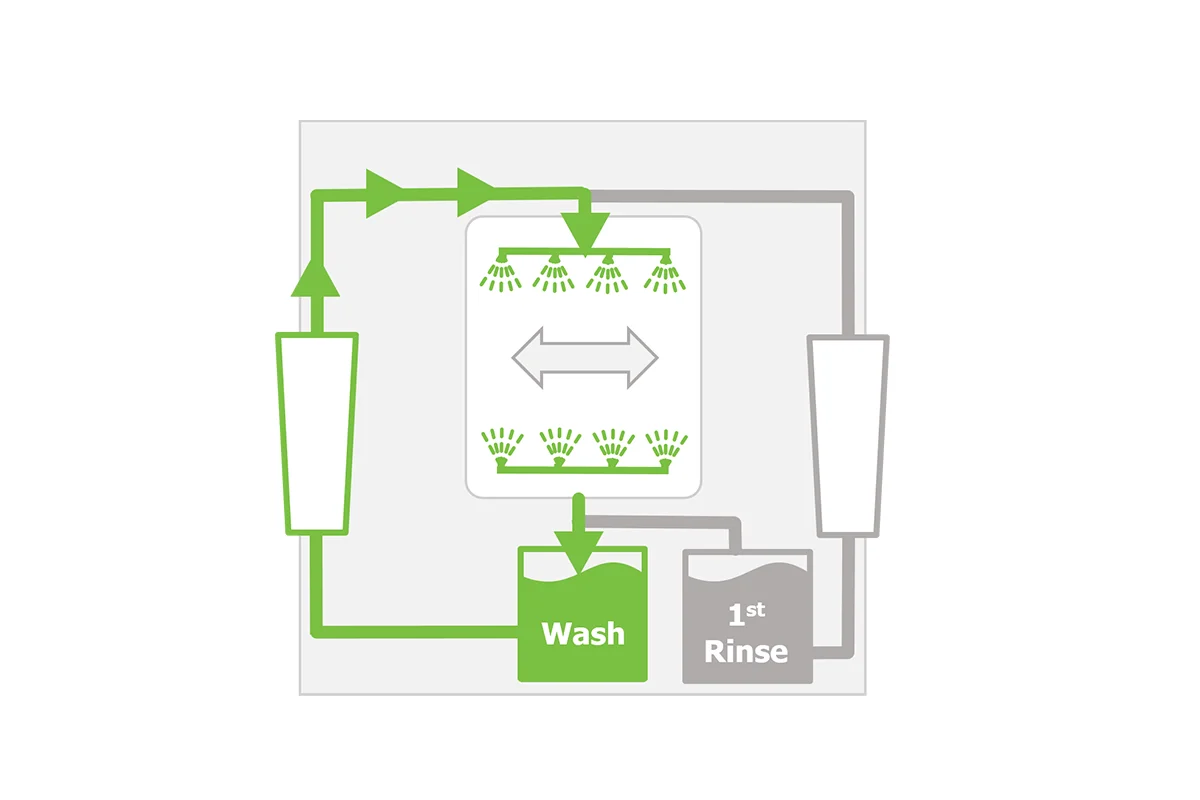

Parts in the oscillating basket are washed both-sides by system of fixed spray nozzles with the water based cleaning agent in a fully closed loop through complete mechanical filtration.

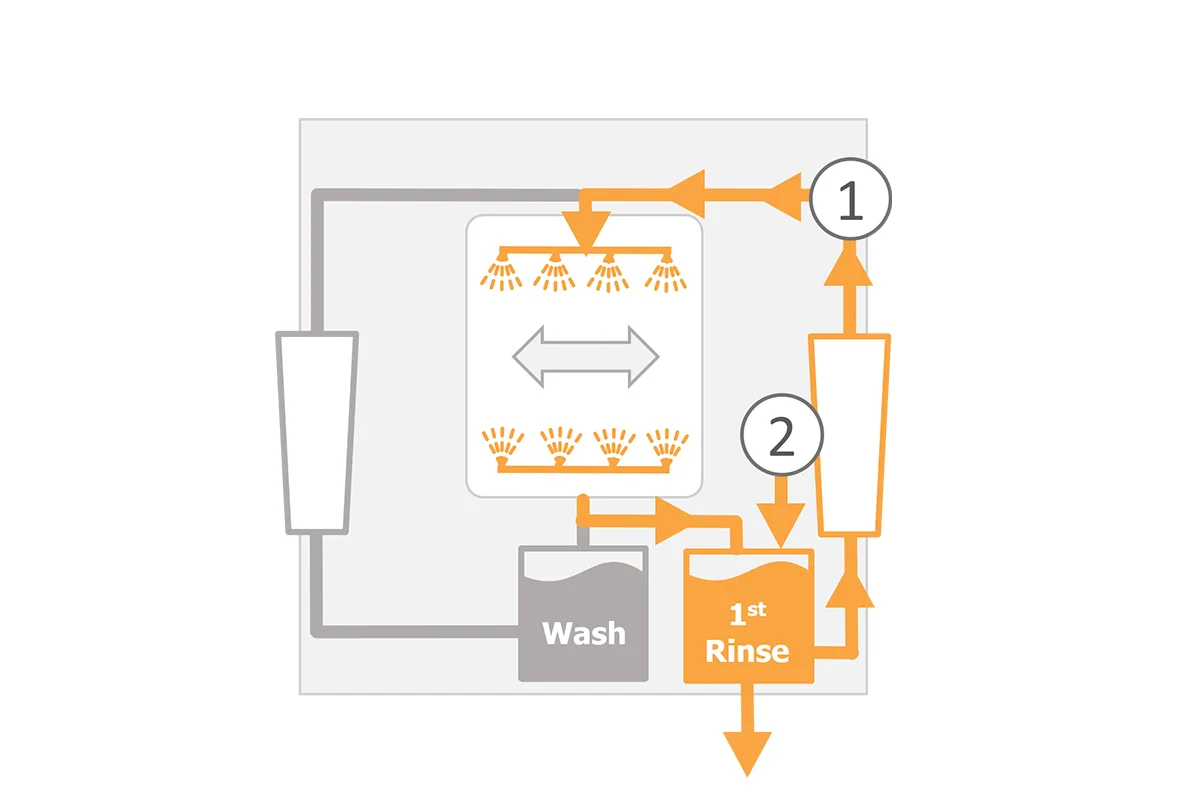

Machine performs first rinse down to required quality level using external rinse water input and drain.

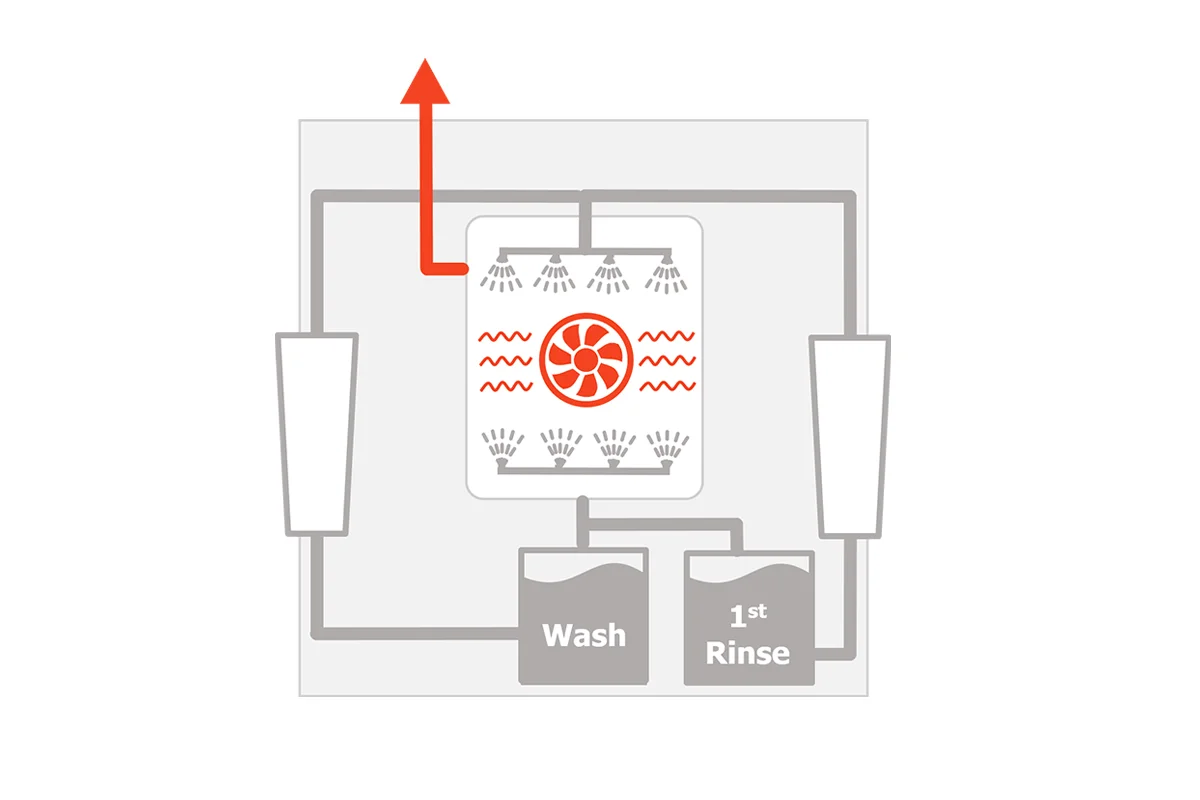

Machine dries parts by convection hot air oven system.
CompaCLEAN middle batch space for the most of th ecleaning pallets used in the SMT production or other mechanical parts to clean.

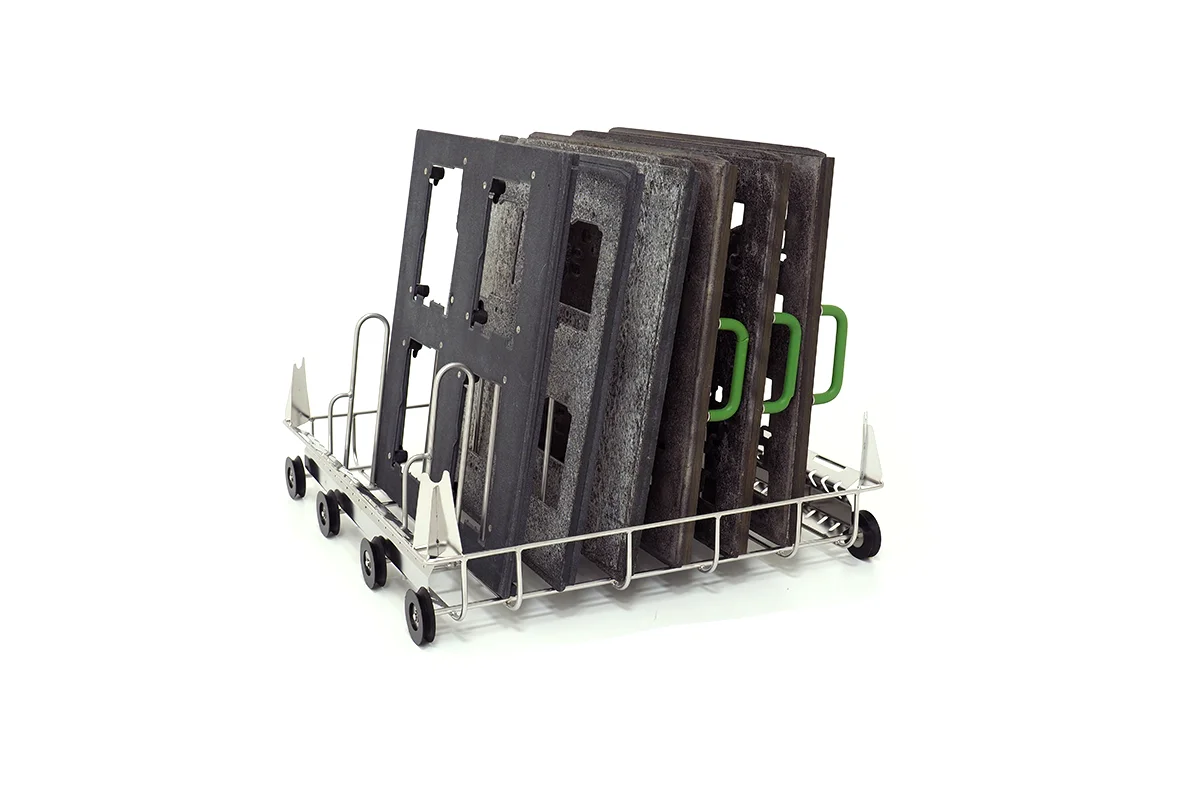

Standard setup for cleaning soldering pallets.
Machine controls all the critical parametres of the cleaning process.

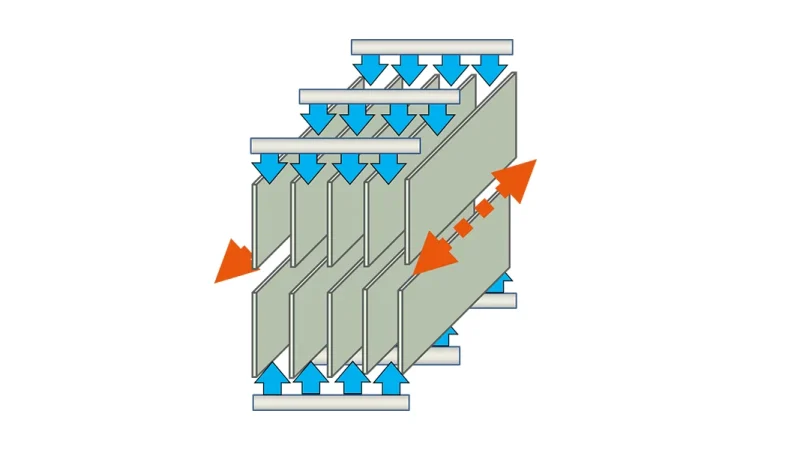

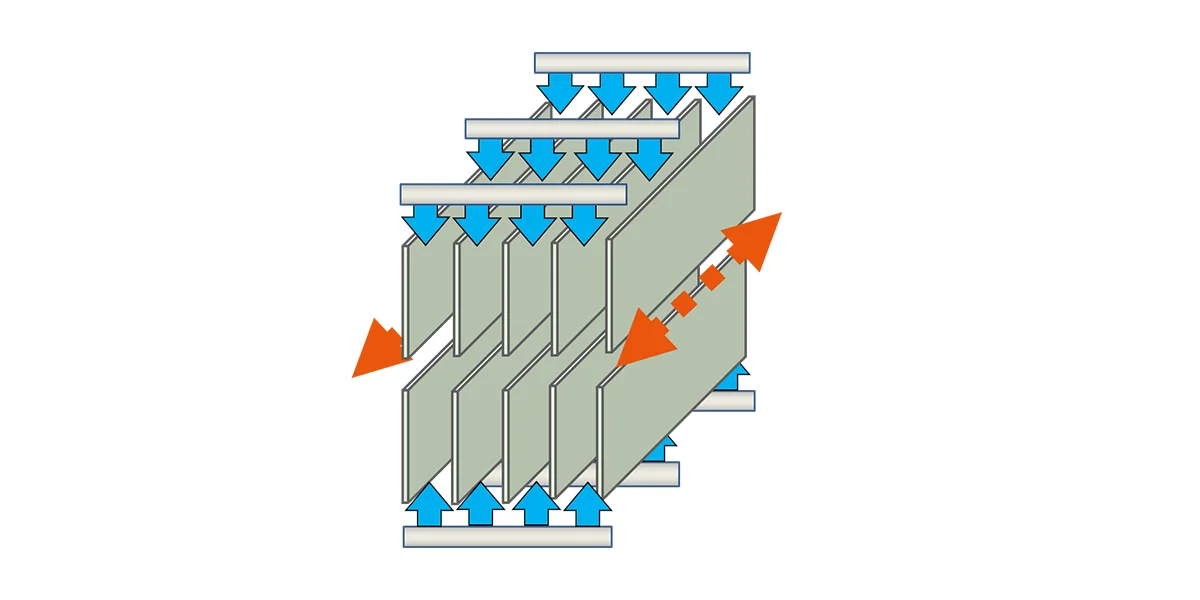

Square pattern of fixed nozzles and high stroke oscillating rack provide highly reproducable cleaning results for every position of the part to clean in the chamber.

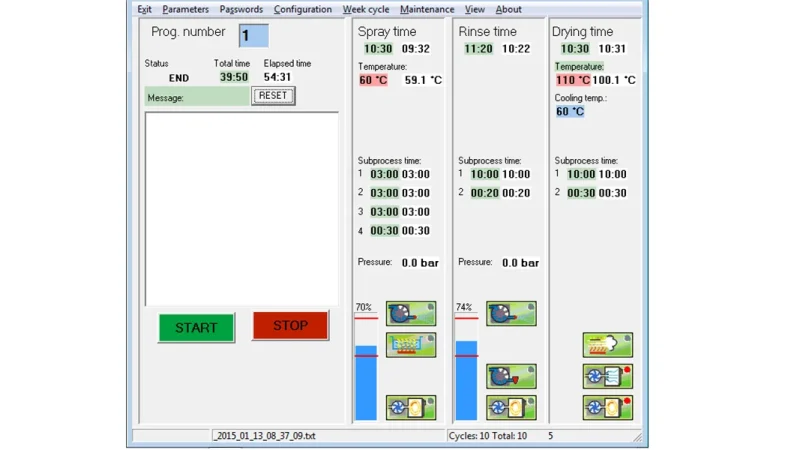

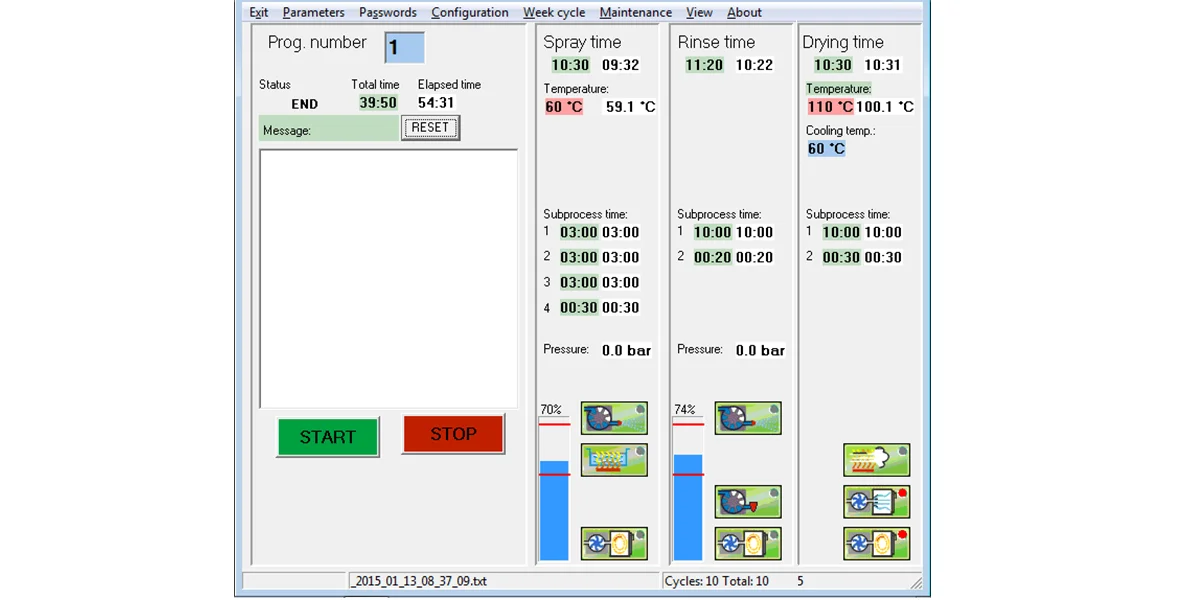

HMI is PC controlled for easy programming and display of all process parameters. Each process step may have up to five sub steps for more precise setting on challenging cleaning tasks.
The pressure on the spray nozzles is continuously monitored by the control system. Values out of range typically indicates mechanical filter to be exchanged, or nozzles to be reviewed.
Requires usage of basic rack and properly selected separators or inserts.
Maximal usable space for cleaned parts including specifically selected clamping.

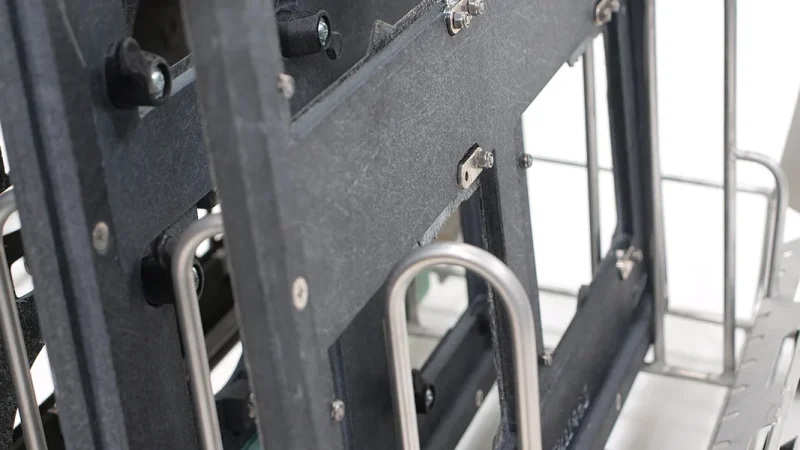

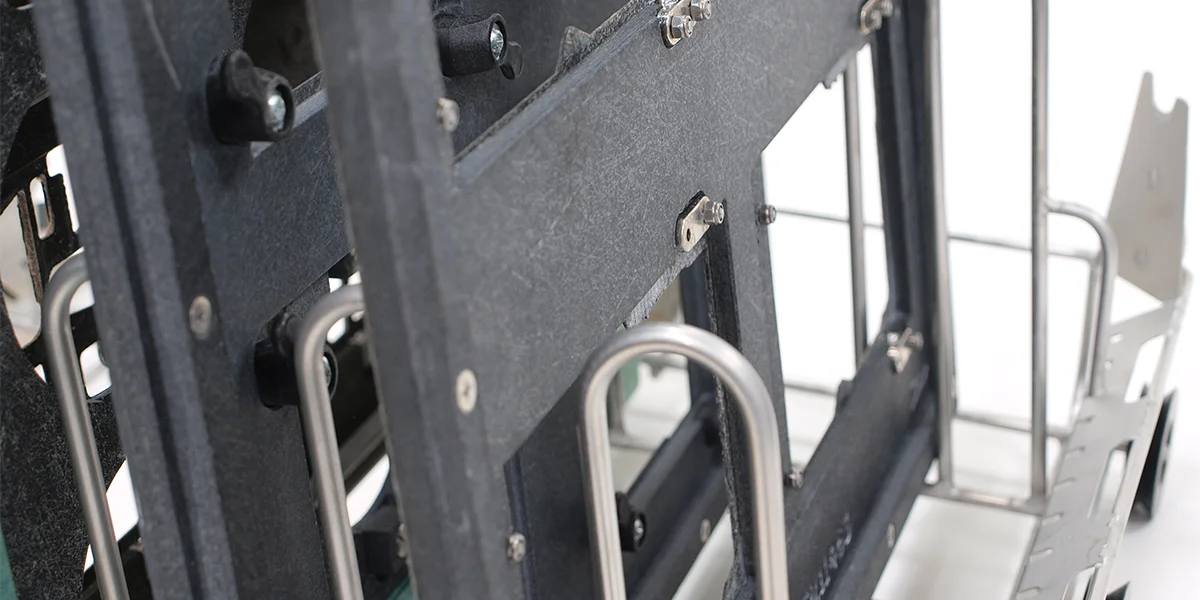

Simple, robust separators for soldering pallet cleaning.

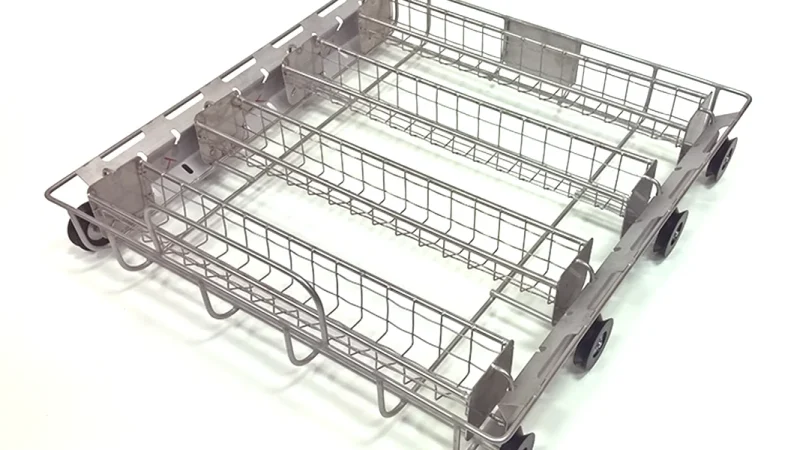

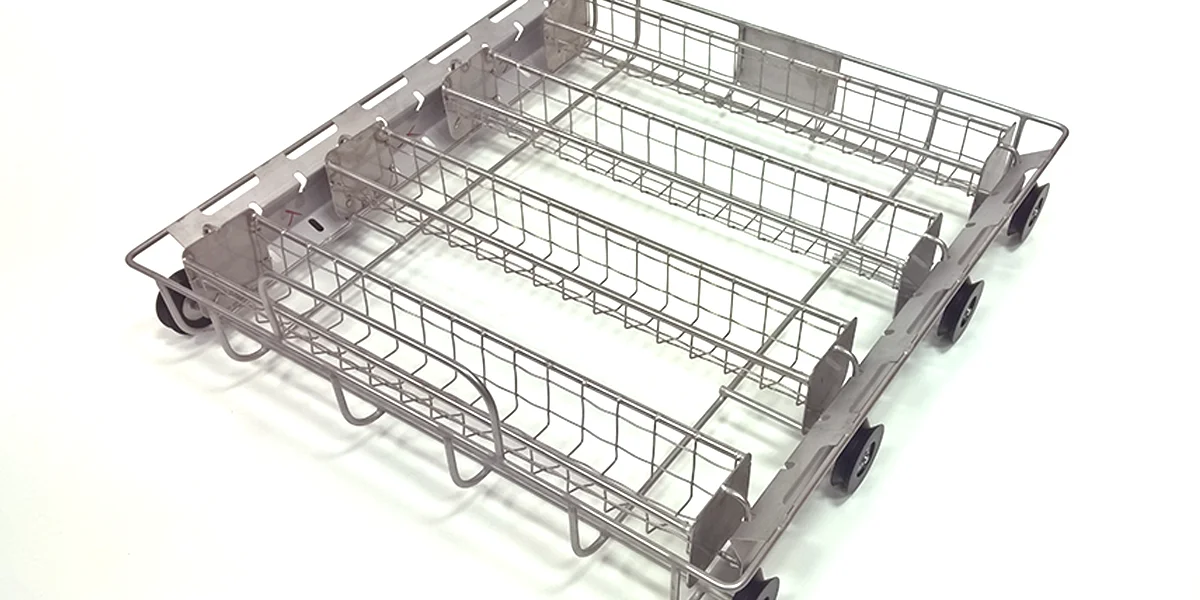

Various sizes of baskets for any type of mechanical parts to clean.
